Expertise in the design and manufacture of fixtures

Fixtures are integral to all manufacturing environments and play a very important role within the manufacturing process. Fixtures can be used for a multitude of tasks, but are generally designed to perform a specific task or aid some particular process.

Software: Solid Works, Catia V5, Pro-E.

We have the necessary expertise in the design and manufacture of fixtures that can be tailored to suit client needs. This not only enhances the overall product quality, but also ensures that the product is manufactured or assembled with consistent accuracy.

According to customer requirements, we have been able to successfully design and supply:

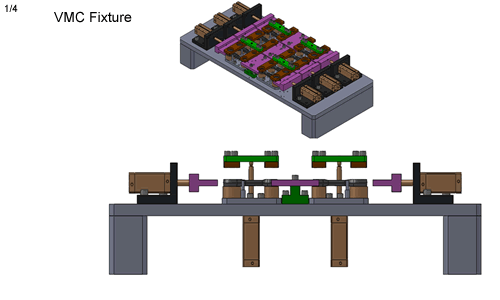

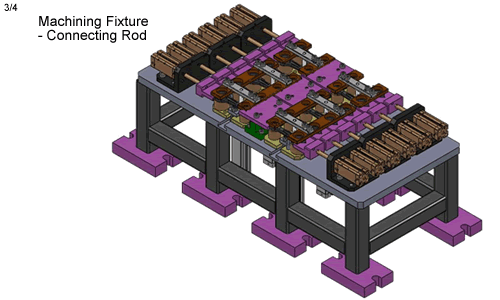

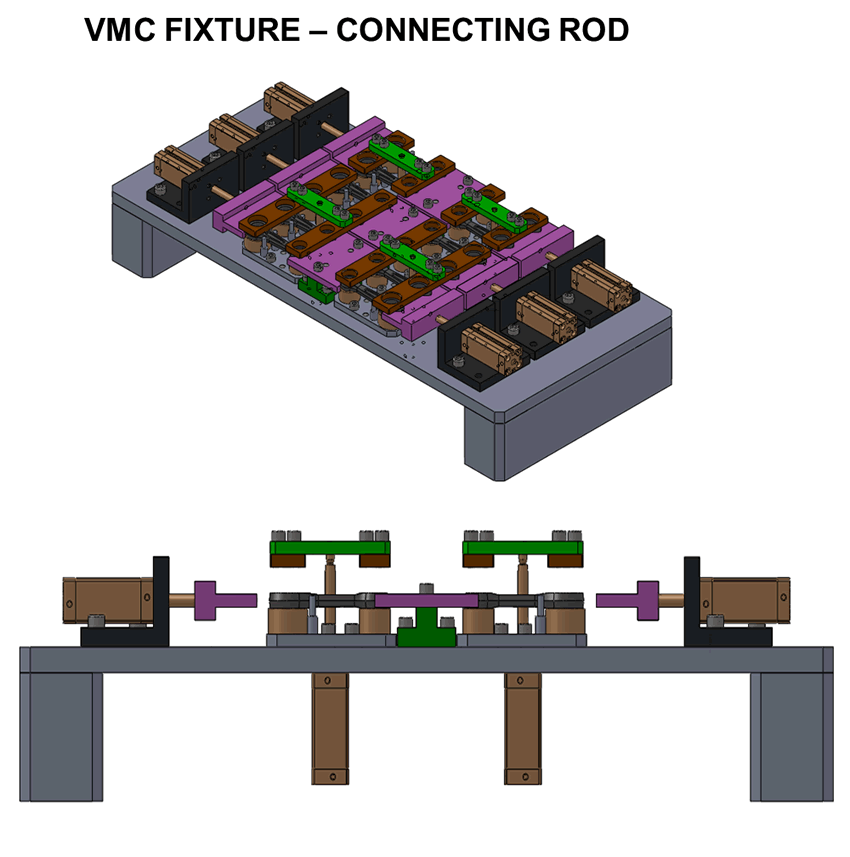

  • VMC machining fixture

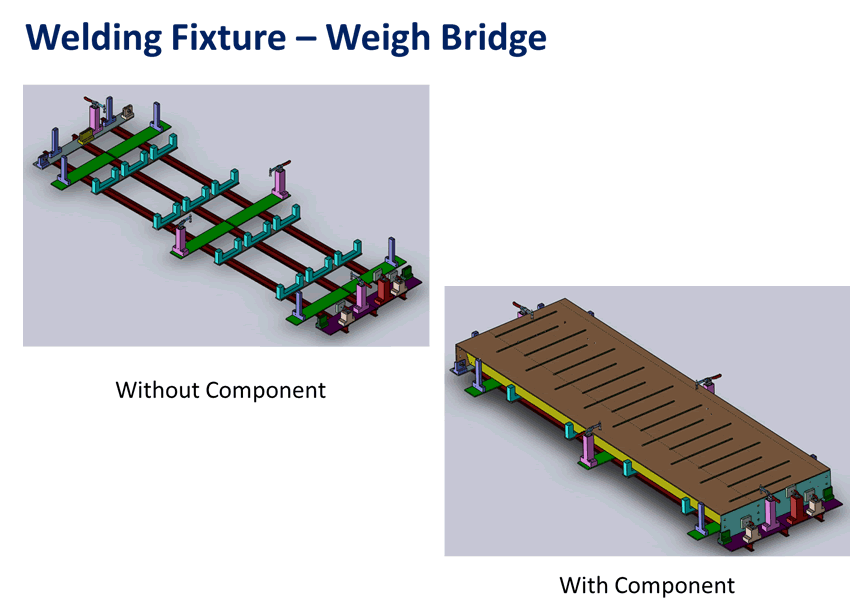

  • Welding fixture
  • Checking fixture
  • Hydraulic
  • Pneumatic fixture
  • Testing fixture
